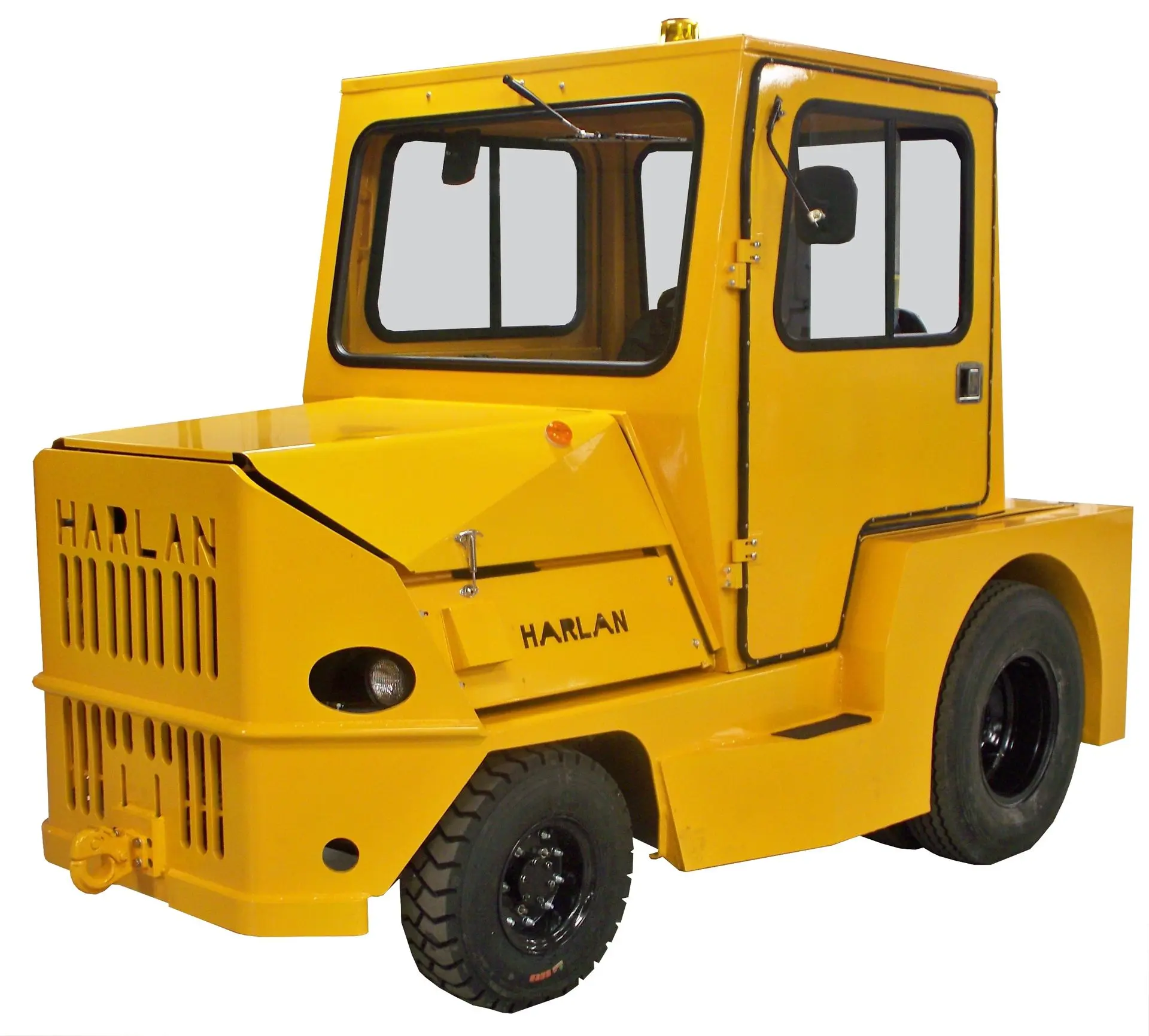

Classic Cargo Master Model HT
The Harlan Cargo Master Model HT is a heavy-duty baggage and cargo tractor available with the latest Tier-rated diesel, gasoline, or LPG engines. Built for demanding ramp conditions, the Cargo Master delivers exceptional torque and towing power through its dual planetary drive axle, providing a drawbar pull from 8,000 to 10,000 lb (35.6–44.5 kN).
This model offers an affordable solution for pushback of regional jets as well as heavy cargo transport. Available options include a complete cab assembly, heat/defrost system, mirrors, beacons, multiple hitch configurations, and suspension-style seats—making the Cargo Master a powerful and proven performer on the ramp.
Características Estándar:
Dual planetary drive axle for exceptional torque and towing power
Robust design built to withstand continuous, heavy-duty ramp operations
Keyless anti-restart ignition switch for safety
Driver and passenger seats with seatbelts for comfort and protection
LED lighting package including two headlights, combination tail/stop, and back-up lights for visibility
Front and rear-mount three-tier hitch (other hitch options available)
LCD dash display for clear system monitoring
Model | HT80 | HT100 |
Drawbar Pull | 8,000 lbs | 10,000 lbs |
Kubota V3600-T | Kubota V3800 | Deutz TCD 2.2 L3 |
Longitud | 115.75” (2941 mm), |
Ancho | 66” (1676 mm) |
| Altura | 61” (1549 mm), |
Distancia entre ejes | 68” (1727 mm) |
| Distancia al suelo | 6” (152 mm) |
Eje de transmisión | Planetary heavy-duty, |
Eje de dirección | Symmetrical stroke steer axle with tapered roller bearing knuckles |
Suspension | Leaf-spring |
Acoplamiento de remolque | Enganche de tres niveles con pasador de 1 3/4” (otras opciones de enganche disponibles) |
Llantas | Delantero: 6,50 x 10 Doble Trasero: LT225/75R x16 |
Motor | Latest model US/Euro emission: diesel, gasoline, LPG, |
Transmisión | Automático Industrial |
Eléctrico | Sistema de 12 V |
Enfriamiento | Liquid-cooled radiator with integrated transmission cooler |
Sistema de dirección | Asistencia eléctrica o hidrostática |
Freno de estacionamiento | Electrically actuated drum |
Frenos de servicio |
Hydraulic, dual rear disc; |
Subject to improvement and/or change without notice
At Harlan Global Manufacturing, we stand behind the quality and reliability of every tractor we produce. Our equipment is built for long-term performance, and each model is backed by a comprehensive warranty designed to protect your investment.
Our warranties reflect Harlan’s commitment to durability, safety, and customer satisfaction. We work closely with operators and service teams to ensure every vehicle continues to perform to the highest standards throughout its service life.
Please refer to your tractor’s owner and maintenance manual for detailed warranty terms, maintenance requirements, and service documentation instructions.
For warranty questions or assistance, our support team is here to help.
Learn More About the Services Harlan Provides
Model | Drawbar Pull |
HT80 | HT100 |
8,000 lbs | 10,000 lbs |
Kubota V3600-T |
Kubota V3800 |
Deutz TCD 2.2 L3 |
Longitud | 115.75” |
Ancho | 66” |
| Altura | 61” |
Distancia entre ejes | 68” |
| Distancia al suelo | 6” |
Eje de transmisión | Planetary |
Eje de dirección | Symmetrical stroke steer axle with tapered roller bearing knuckles |
Suspension | Leaf-spring |
Acoplamiento de remolque | Three-tier hitch with 1 3/4” Pin |
Llantas | Front: |
Motor | Latest model US/Euro emission: |
Transmisión | Automático Industrial |
Eléctrico | Sistema de 12 V |
Enfriamiento | Liquid-cooled radiator with integrated transmission cooler |
Sistema de dirección | Asistencia eléctrica o hidrostática |
Freno de estacionamiento | Electrically actuated drum |
Frenos de servicio |
Hydraulic, |
Subject to improvement and/or change without notice
