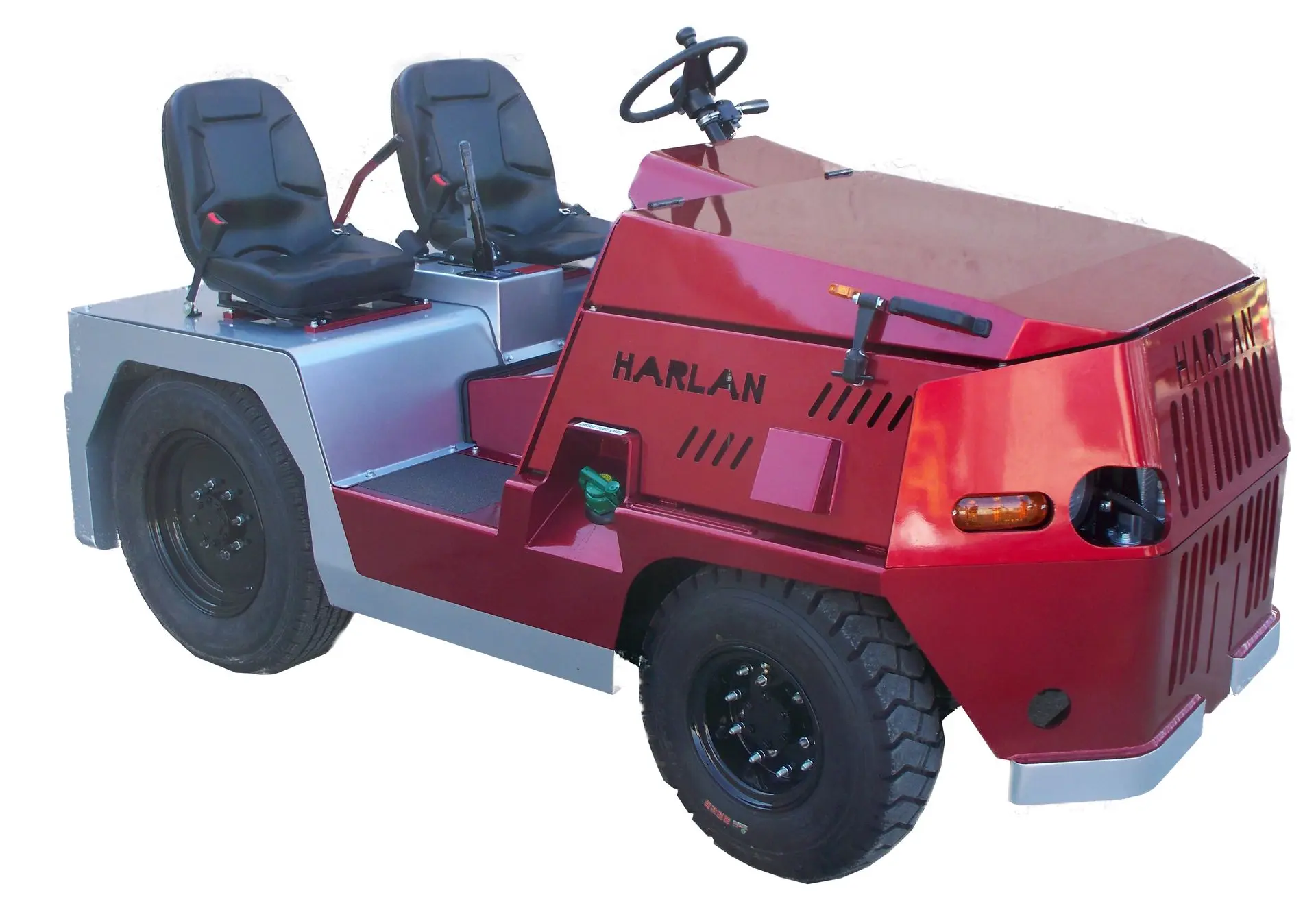

TransCon Model HTSB
The Harlan Model HTSB is available with the latest model US/Euro emission compliant engines. This compact, shorter wheelbase, low profile design is robust with excellent all around visibility.
Designed for cargo and baggage applications, this unit can also be utilized for pushback of small aircraft (with front hitch option package). Some options include complete cab assembly, heat/defrost, mirrors, beacons, variety of hitches and suspension seats.
Standard Features:
F-N-R Shifter
Keyless Anti-Restart Ignition
Two LED Headlights
Combination LED Tail/Stop Lights & Back-up Light
Standard Driver and Passenger Seat
Seatbelts
Rear Mount E-Hitch (other hitch options available)
LCD Display for Hours, Fuel Level, Oil Pressure, Water Temperature (display varies by engine type)
Model | HTSB40 | HTSB50 | HTSB60 |
Drawbar Pull | 4,000 lbs | 5,000 lbs | 6,000 lbs |
Kubota V3600, diesel |
Ford MSG425, gas |
Kubota V3800, gas |
Length | 105.75” (2,687 mm), |
Width | 57.5” (1,460 mm) |
| Height | 56.5” (1,435 mm), |
Wheelbase | 60 3/8” (1,534 mm) |
| Ground Clearance | 7.75” (196.8 mm) |
Drive Axle | Harlan off-set, |
Steer Axle | Heavy-duty Harlan dual shaft |
Suspension | Front: Leaf-spring |
Towing Coupler | E-hitch with 1" pin |
Tires | Front: 165/R13 |
Engine | Latest model US/Euro emission: diesel, gasoline, LPG, |
Transmission | Automatic industrial |
Electrical | 12V System |
Cooling | Liquid-cooled radiator with integrated transmission cooler |
Steering System | Hydrostatic |
Park Brake | Electrically actuated drum |
Service Brakes | Hydraulic, single front and rear disc |
Subject to improvement and/or change without notice
